| Place of Origin: | Shenzhen China |
| 브랜드 이름: | KAILITE |
| 인증: | CE RoHS ISO9001 UL FCC CCC |
| Model Number: | P1.25 P1.56 P1.95 P2.5 P2.6 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Wooden case/Flight case |
| Delivery Time: | About 22-24 days |
| Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
| Supply Ability: | 8000 square meters per month |

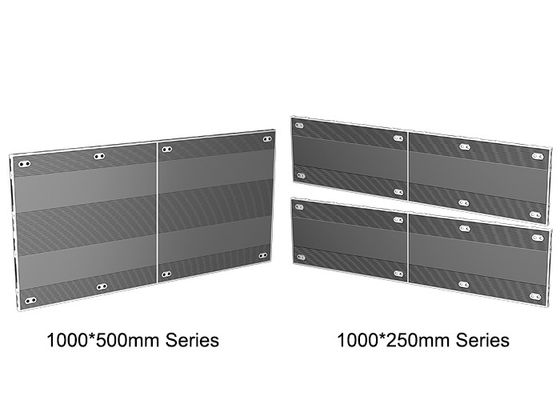

| Product name: | Ultra Thin Aluminum Indoor LED Video Wall | Cabinet size: | 1000*500mm/1000/250mm |
|---|---|---|---|
| Module Size: | 250*250mm | Maintenance way: | Front |
| Life span: | >100,000 Hours | Module Connection: | Pin connection(Hard connection) |
| Installation Method: | Hanging/Mounted on the wall | Input Voltage: | 100-240V AC |
New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall
Description of Ultra Thin Aluminum Indoor LED Video Wall
Indoor LED Video Wall Panel pixel include 1.25mm, 1.56mm, 1.95mm, 2.5mm, 2.604mm, 2.97mm, 3.91mm, within these pixels, 2.5mm, 1.95mm, are the most hot-selling and highest cost-effective series. You can use it in office for conference display or fixed in shopping mall for advertising.
Product Specification:
| Item | P1.25 | P1.56 | P1.95 | P2.5 |
| Pixel pitch | 1.25mm | 1.56mm | 1.95mm | 2.5mm |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Module resolution | 200×200 | 160×160 | 128×128 | 100×100 |
| Physical density | 640000 dots/㎡ | 109600 dots/㎡ | 262144 dots/㎡ | 160000 dots/㎡ |
| LED type | SMD1010 | SMD1212 | SMD1515 | SMD1515 |

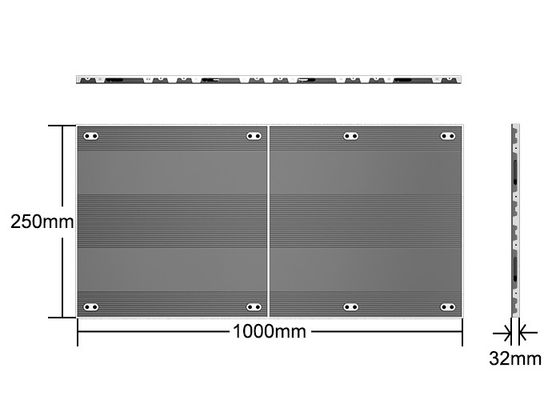

| Cabinet size | 1000*500*32mm | 1000*500*32mm | 1000*500*32mm | 1000*500*32mm |
| Cabinet resolution | 800*400 | 640*320 | 512*256 | 400*200 |
| Maintenance way | Front | Front | Front | Front |
| Best viewing distance | ≥1.2m | ≥1.5m | ≥1.9m | ≥2.5m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/64 Scan | 1/40 Scan | 1/32 Scan | 1/25 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | over 3840Hz | over 3840Hz | over 3840Hz | over 3840Hz |
| Brightness | 700-800nits | 700-800nits | 700-800nits | 700-800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP40 | IP40 | IP40 | IP40 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of products:
1. Ultra thin, aluminum light weight cabinet.
2. HD display, pricise connection.
3. Quick installation.

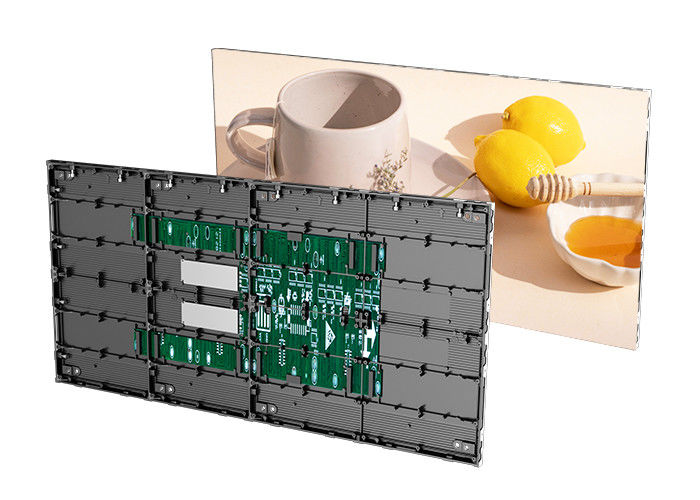

4. Front maintenance design, easy to replace modules or repair receive card and power supply.
5. Seamless splicing.
Shipping and Package
The main shipping way is by sea and air, conbined with road transport. we have different choices for package, including Wooden case (most time for fixed series), flight case and cartoon.
After-sell service:
1. Providing controller and software manual, to help customer handle the functions quickly.
3. Failure maintenance of LED panels.
4. Providing customer with the loading program, remote assistance when necessary.
5. 2 years quality guarantee period.
FAQ:
1. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools, then install it step by step according to the drawing.
2. Do you test all your goods before delivery?
Yes, all modules will be tested during production, the complete screen will be aging test before shipment.
3. Is it okay to print my logo on your product?
Yes that's okay for us, we provide free printing service.
4. What's your package and shipping way?
Goods are packed with wooden or flight case ; delivered by air or sea.
5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
