| 원래 장소: | 광동, 중국 |
| 브랜드 이름: | kailite p10 outdoor led screen |
| 모델 번호: | P10 야외 주도하는 스크린 |
| 최소 주문 수량: | 12 |
|---|
| 튜브 칩 컬러: | 1R1G1B 풀 컬러 | 드라이브 방법: | 1/2 스캔 |
|---|---|---|---|
| 물리 밀도: | 10000 점/sqm | 새로 고침 속도: | 1920Hz-3840Hz |
| 명도: | 6500cd/sqm | 평균 전력: | 450W |
| 픽셀 피치: | 10mm | 모듈 크기: | 320*160mm |
| LED 칩: | SMD3535 | 모듈 해상도: | 32*16 |
| 모듈 전원: | 70W | 보기 각도: | Ｈ : 140' ; Ｖ :140' |
| 최대 전력: | 900W | 캐비닛 크기: | W960m × H960mm |
| 무게: | 32kg/패널 | ||
| 강조하다: | P10 outdoor LED billboard,6500cd/sqm full color display,outdoor advertising LED screen |
||
| Name | P10 LED Billboard |
| Usage | Displaying Videos, Images, Texts |
| Tube Chip Color | 1R1G1B Full Color |
| Drive Method | 1/2 Scan |
| Physical Density | 10000 dots/sqm |
| Refresh Rate | 1920Hz-3840Hz |
| Warranty | 2~3 Years |
| Brightness | 6500cd/sqm |
| Certificate | CE ROHS FCC ISO9001 CCC |
| Average Power Consumption | 450W |
| Color | Full Color |
| Use Environment | Outdoor |
| Pixel Pitch | 10mm |
| Module Size | 320×160mm |
| Physical Density | 10000 dots/square meter |
| Pixel Configuration | 1R1G1B |
| LED Chip | SMD3535 |
| Module Resolution | 32×16 |
| Module Power | 70W |
| Recommended Viewing Distance | 10-70m |
| Best Viewing Angle | H: 140°; V:140° |
| Maximum Power Consumption | 900W |
| Average Power Consumption | 450W |
| Cabinet Size | W960mm×H960mm |
| Standard Cabinet Resolution | 96×96 |
| Weight | 32kg/panel |
| Driving Method | 1/2 Scan, Constant Current |
| Video Frame Rate | ≥60 Hz |
| Refresh Rate | ≥1200Hz |
| White Balance Brightness | ≥6500cd |
| Operating Temperature/Humidity | -40℃~+65℃ |
| Ingress Protection | Front:IP67; Back:IP65 |
| Input Voltage | 110-220V AC±10% |
| Gray Scale/Color | Display Colors ≥16.7 Million |
| Brightness Control | Manual/Automatic |
| Input Signal | RF, S-VIDEO, RGBHV, YUV, YC & COMPOSITION, etc. |
| Control System | Asynchronous or Synchronous |
| MBTF | >5000 hours |
| Life Time | >100,000 Hours |
| The Rate | <0.0001 |

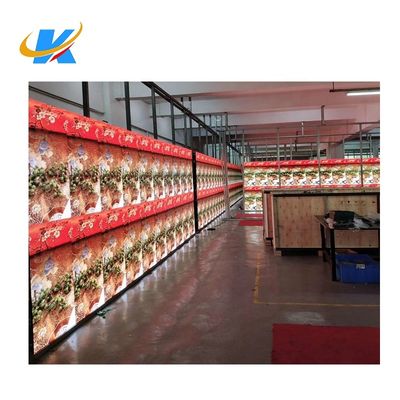

We are a factory with 8000 square meters working plant, and we welcome you to visit our facility.
We provide a complete range of indoor and outdoor LED display panels with various pixel pitches to meet different requirements.
The optimal pixel pitch depends on viewing distance and display size. Our team can help you select the best option for your project.
For orders under 50 square meters, typical lead time is 15-18 working days.
Yes, we welcome sample orders to evaluate our product quality and service.
